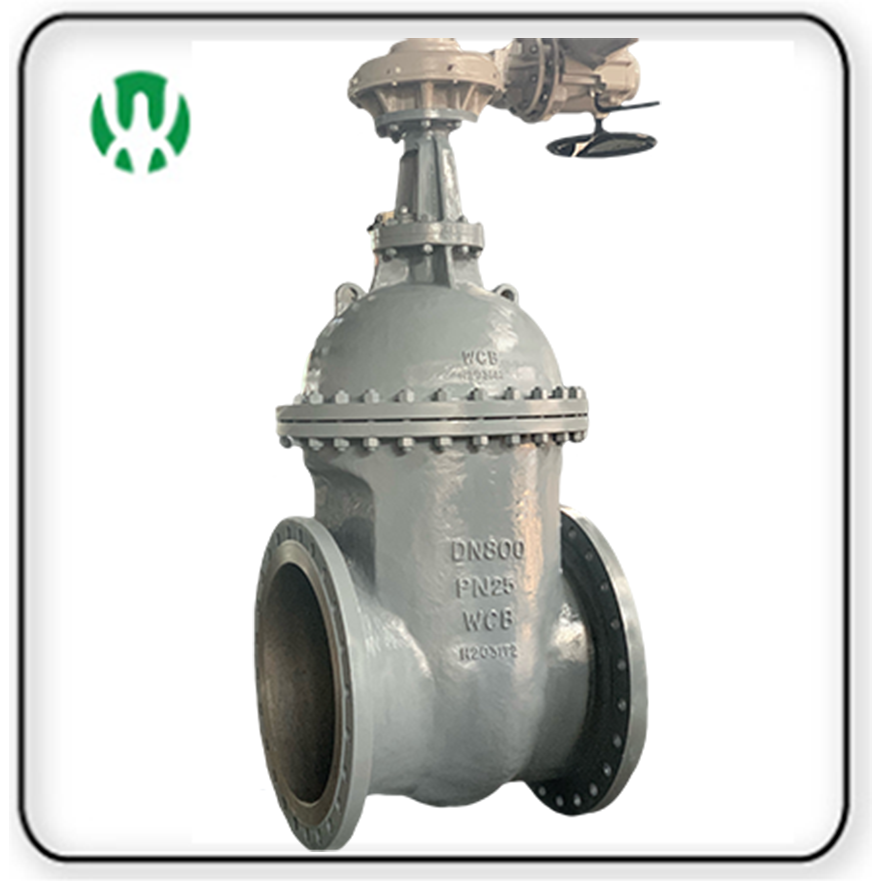

DIN  Gate Valve With Electric Actuator

DIN   Gate Valve With Electric Actuator is suitable for various pipelines with pressure ranging from PN10 to PN100 and working temperatures of -59 to 425℃ (Carbonsteel) , -29 to 650℃ (chromium-molybdenum steel),and -40 to 500℃ (stainless steel).It can be widely used as a shutoff device on liquid pipelines in industries such asperoleum, chemical engineering, food, tap water, sewage, construction, medicine, light textile, power, shipping, metallurgy, and energy systems.

The function of electric actuator

1. Realize the automatic control of valves: The valve electric head receives electrical signals from the upper-level control system (such as PLC, DCS, etc.) to control the opening degree of the valve, thereby achieving the automatic opening and closing or flow regulation of fluid media (such as gas, liquid, etc.).

2. Enhance control accuracy and efficiency: Compared with manual operation, electric valves can more precisely control the opening degree of the valve and achieve remote control, improving the degree of automation and efficiency of the production process.

3. Adapt to various working conditions: The electric valve head can select different types of electric actuators, such as on-off type and regulating type, according to different working conditions to meet different control requirements.

4. Improve working environment: In some dangerous, harsh or hard-to-reach working conditions, the use of electric valves can avoid manual operation, improve the working environment and enhance safety.

5. Achieve remote control: Through the control system, valves far from the control room can be operated remotely, facilitating production scheduling and management.

Structural Features:

1.Design & Compliance: Engineered and manufactured in accordance with leading international standards, ensuring reliable sealing and superior performance.

2.Compact & Aesthetic Design: Features a rationally compact structure with an aesthetically pleasing appearance.

3.Easy Operation: Employs a wedge type flexible gate design; medium and large diameters   incorporate antifriction bearings for smooth, low-torque opening and closing.

4.Material Versatility: Comprehensive range of valve body materials. Packing and gaskets are optimally selected based on actual service conditions or specific customer requirements.

5.Connection Flexibility: Accommodates various domestic and international piping flange standards (e.g., ASME, EN, JIS) and flange face types (e.g., RF,RTJ), meeting diverse specifications.
