Product Detail

DIN Electric Globe Valve

Share to：
WeChat
Facebook
X
DIN Electric Globe Valve
产品详情


Brand

ZheJiang HanweiModelJ41H /J541Y/J941HConnection EndFlanged
Body materialWCB,Stainless steelDNDN50-DN1000MediaWater,Steam,oil
sealing formHard/soft sealingStandardDINWedgeWCB

Flow Direction

one wayOperation

Handwheel,Gear,Motorized

UsageFluid cut-off



DIN Globe Valve can completely shut off fluid flow in a pipeline. It allows for:Safely separating sections for maintenanceor repair,stopping flow entirely (not for throttling) and roviding a positive seal against leaks when closed.

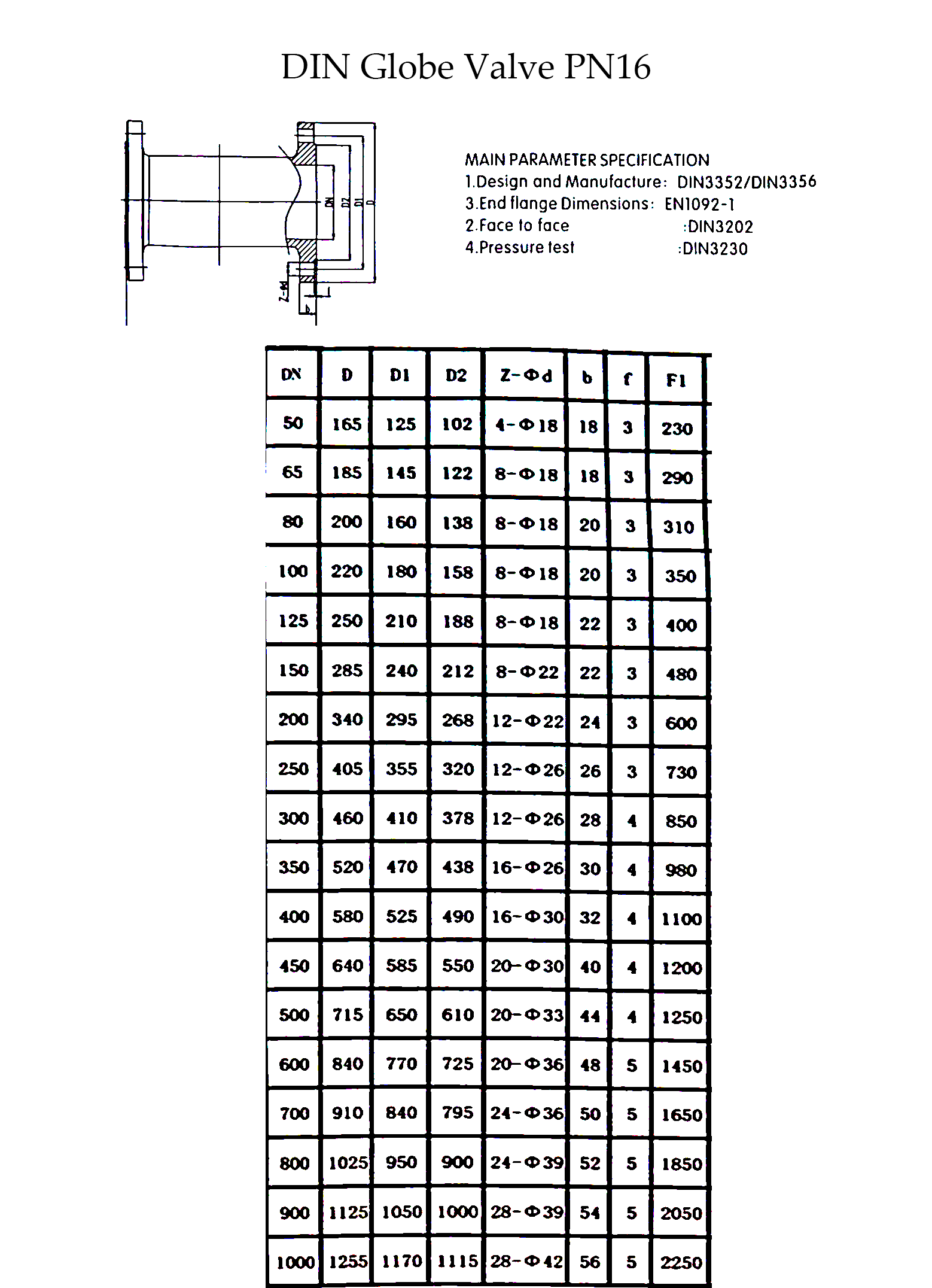

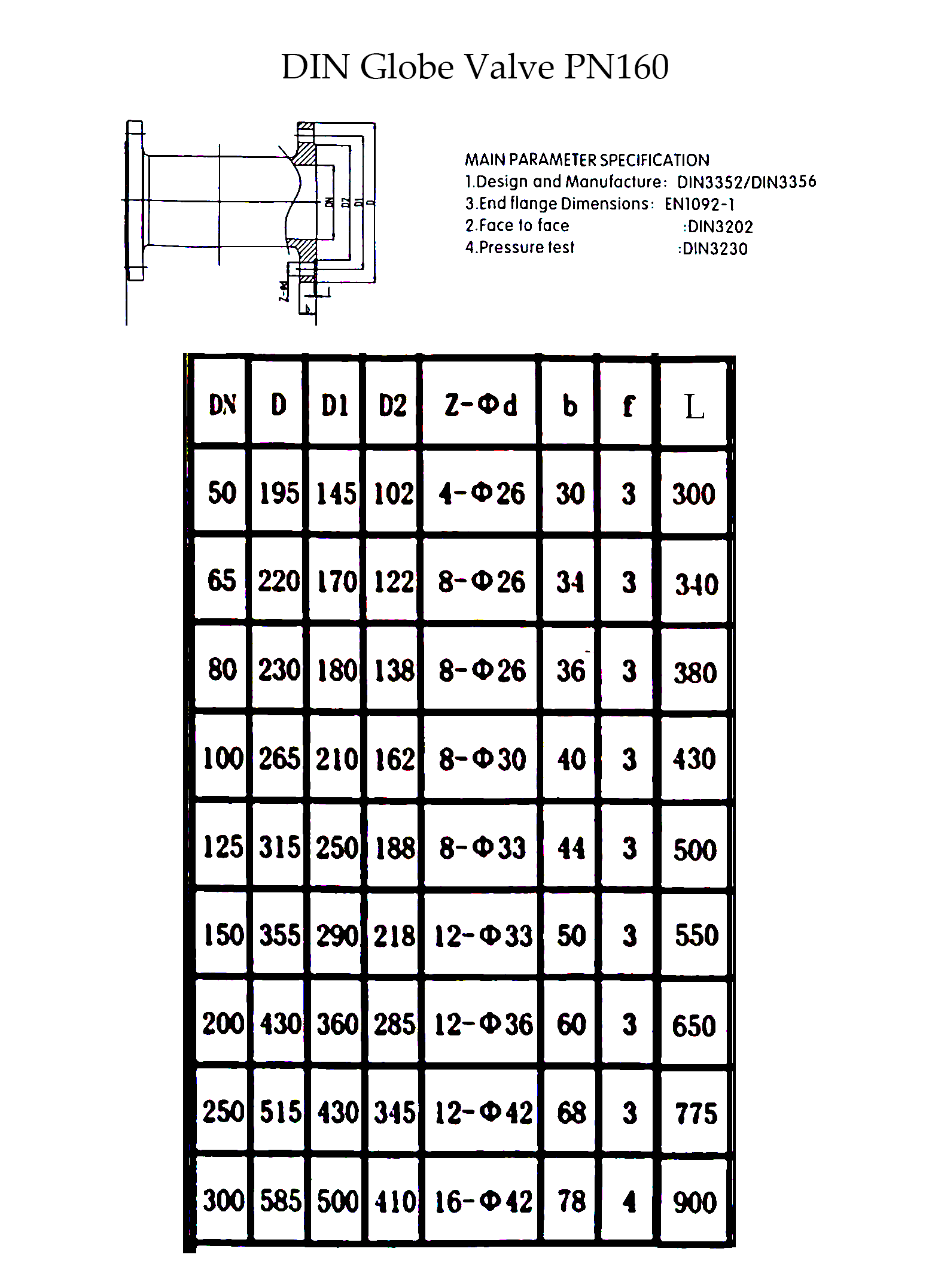

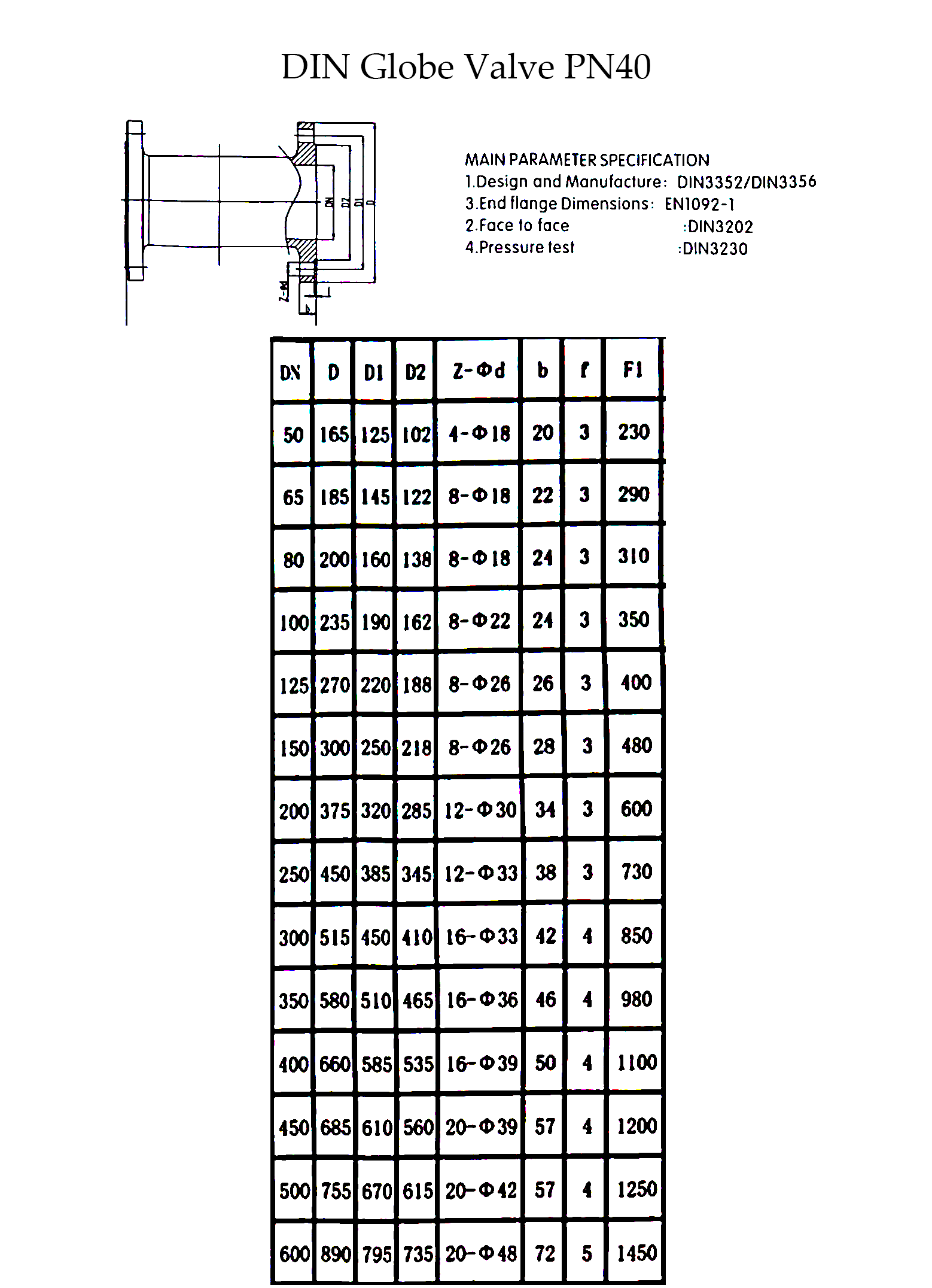

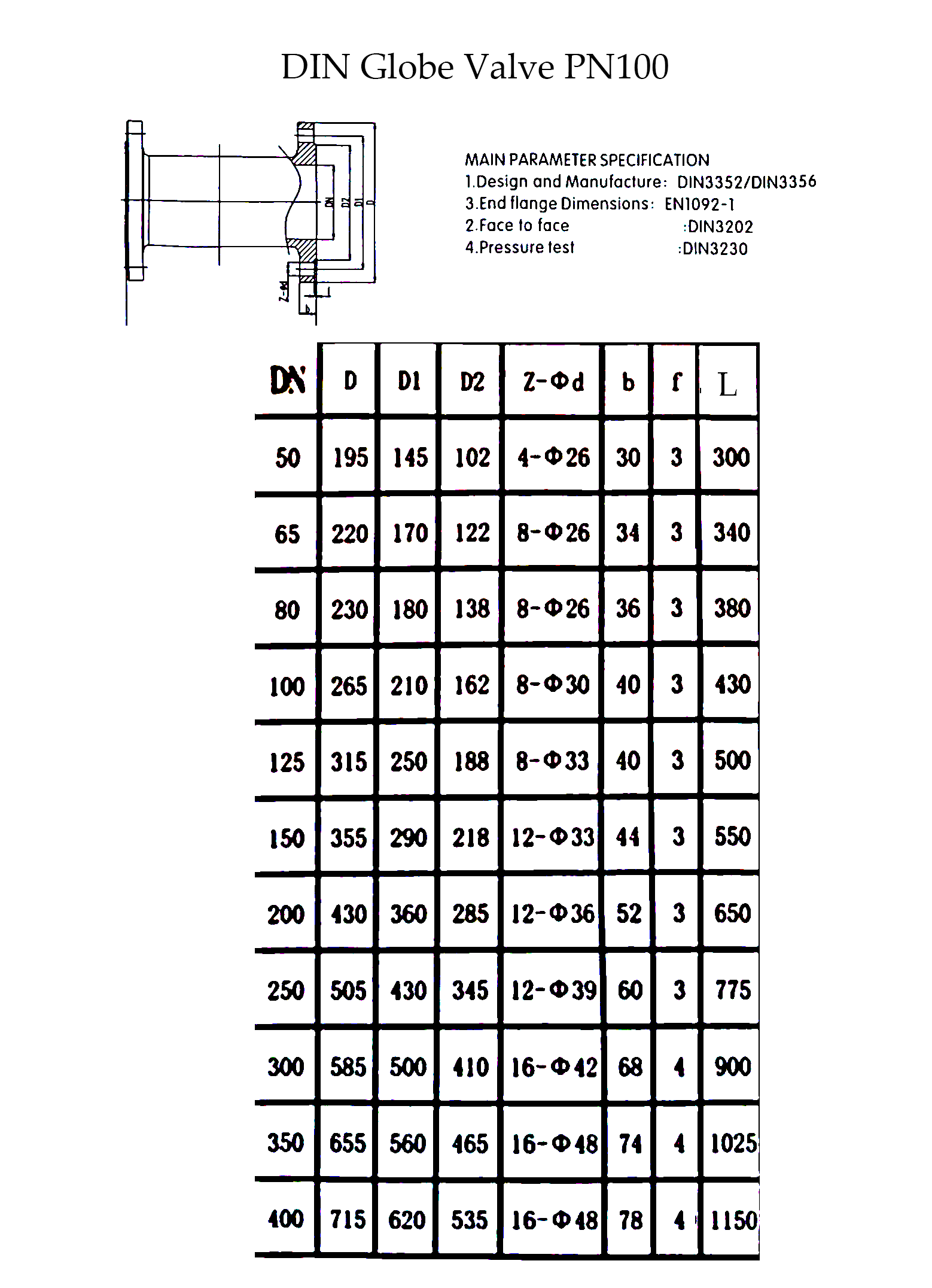

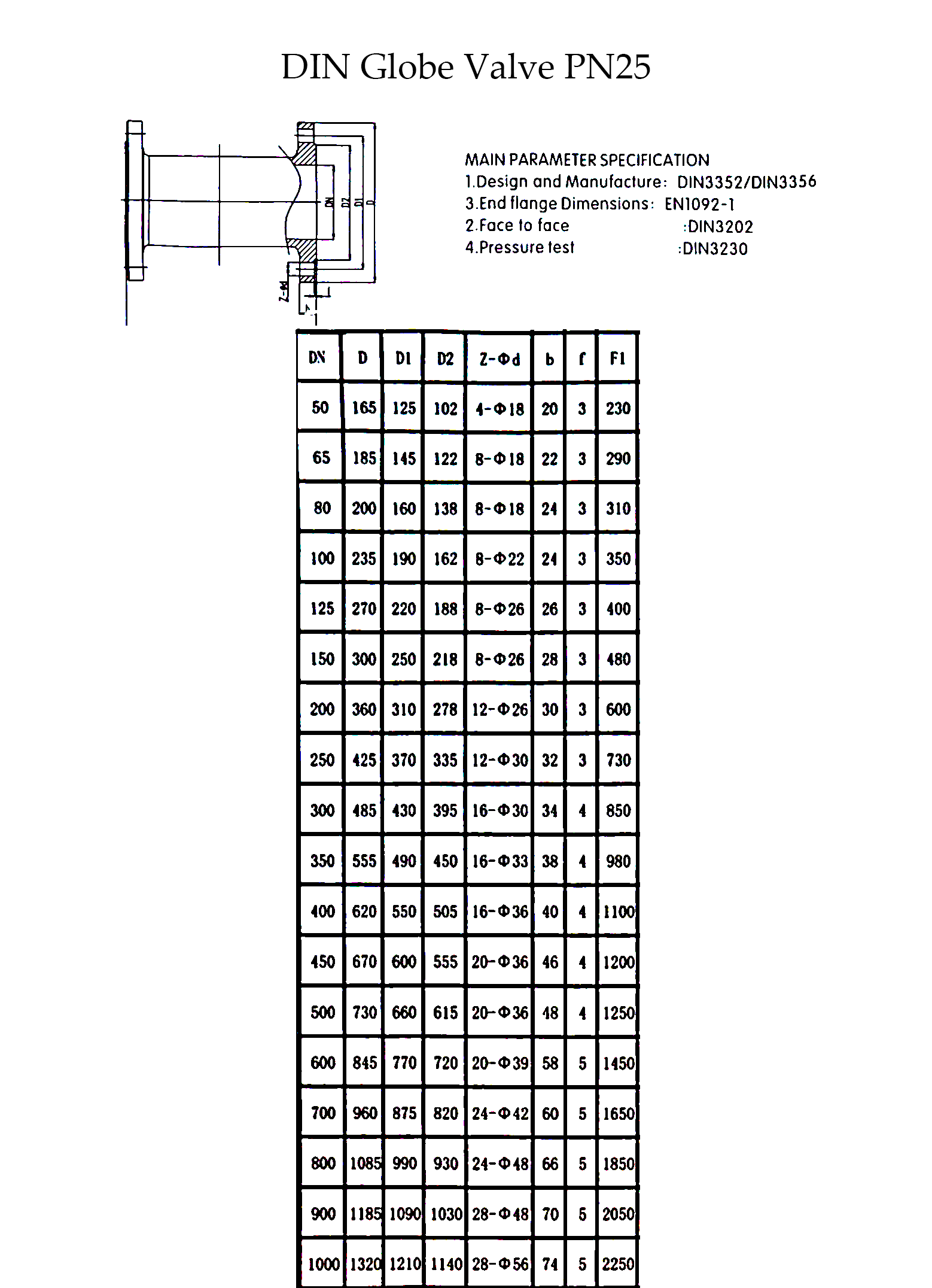

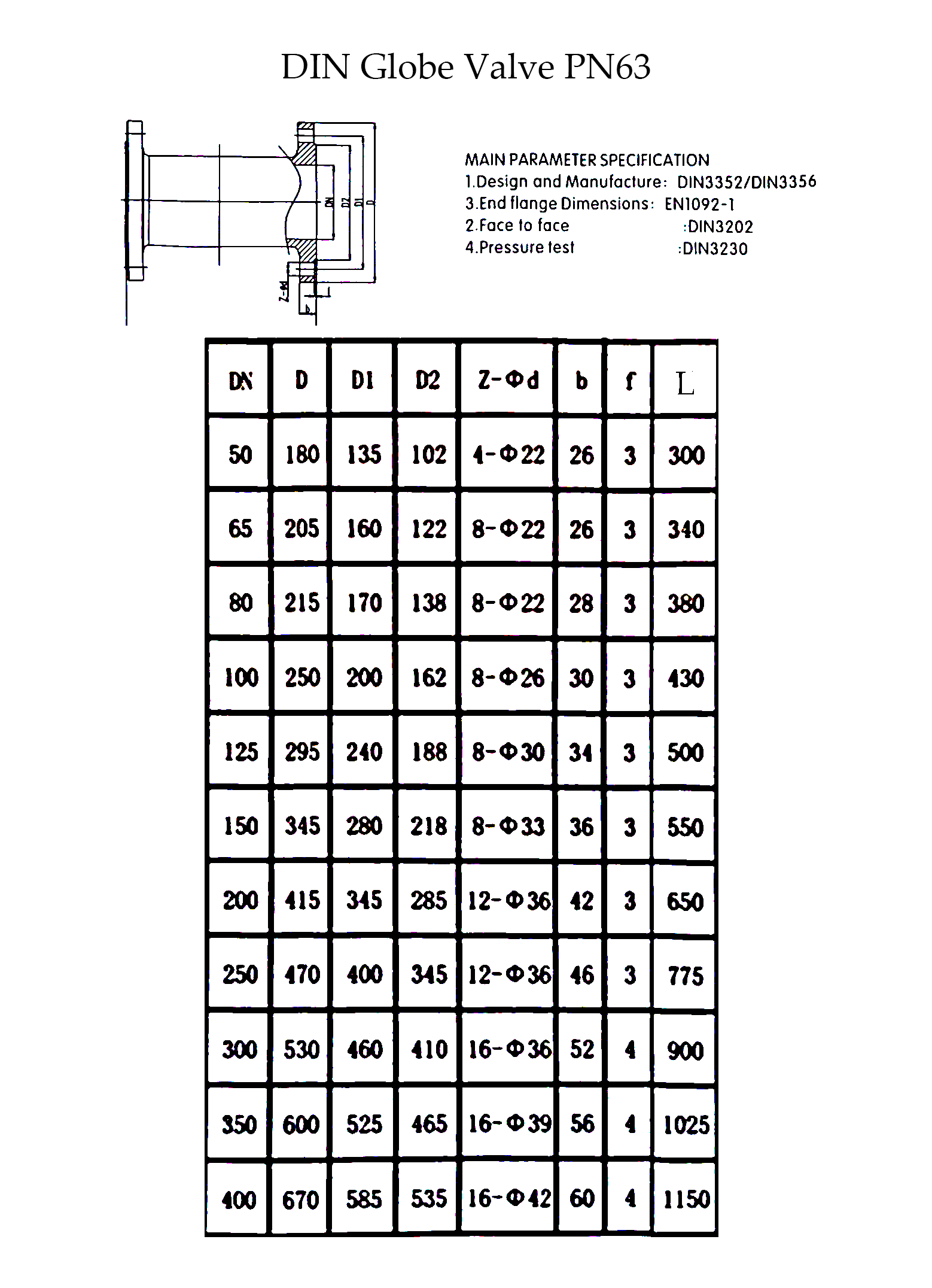

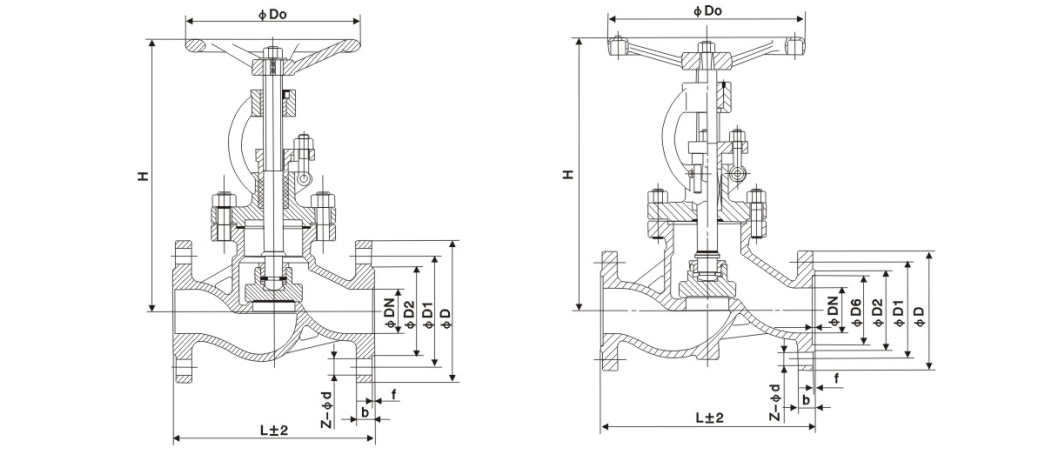

德标截止阀.png德标截止阀PN16.png德标截止阀PN25.png德标截止阀PN40.png德标截止阀PN63.png德标截止阀PN100.png德标截止阀PN160.png

—————————————————————————————————————————————————————————————————————————
