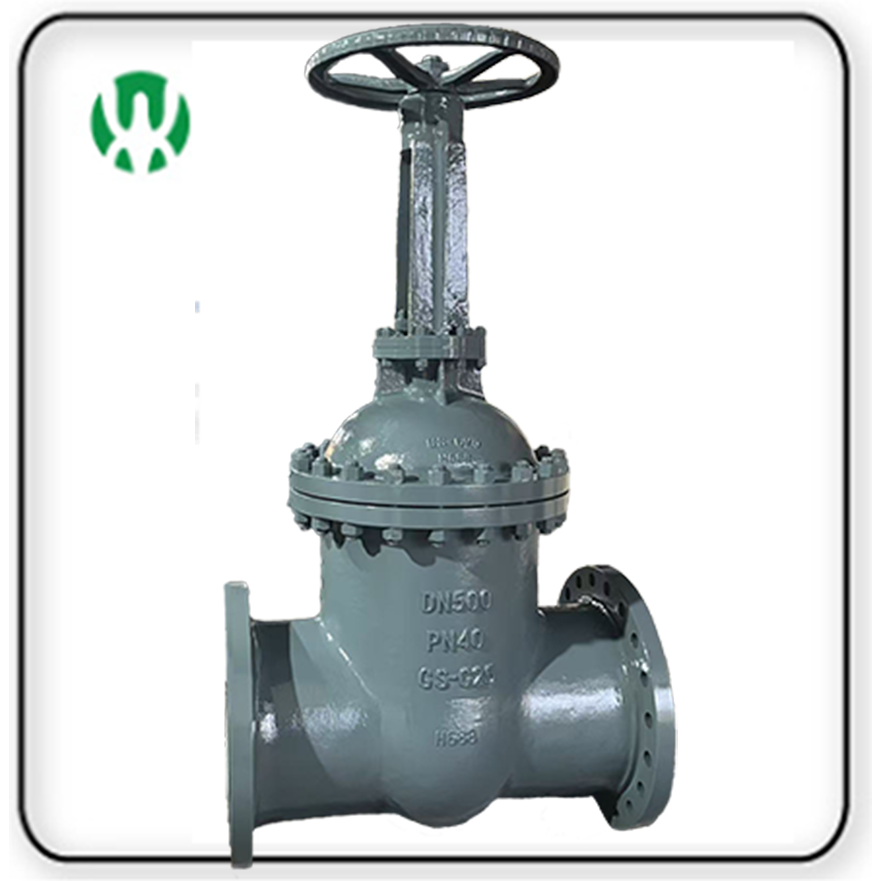

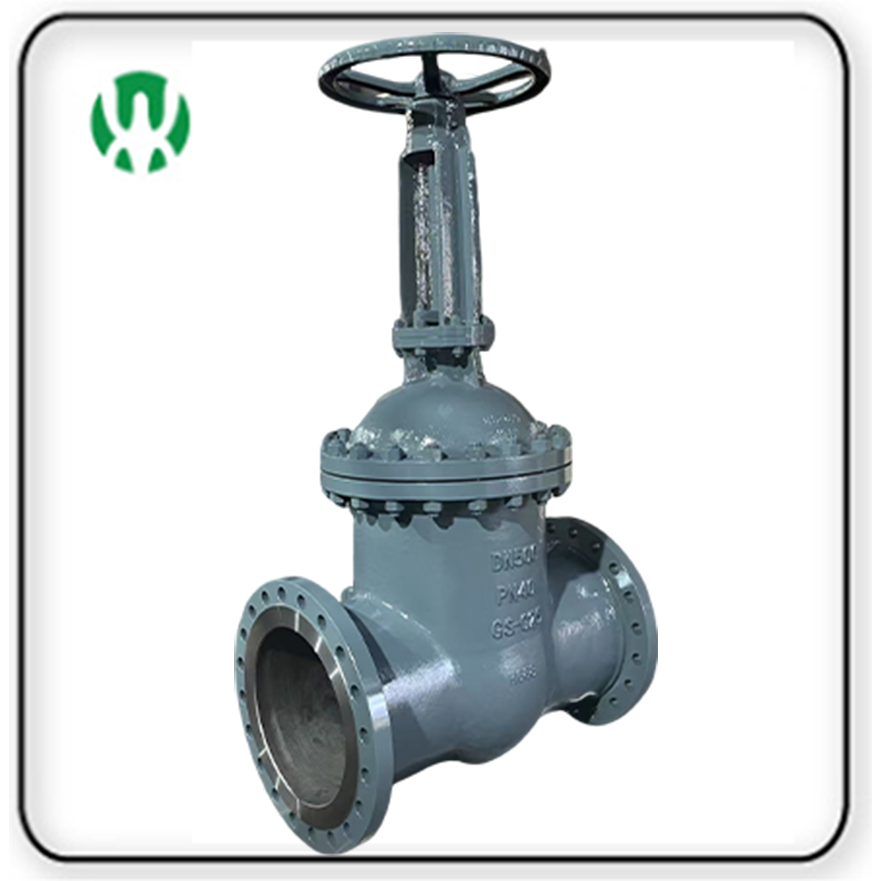

DIN Rising Stem Gate Valve

DIN Rising Stem Gate Valve is suitable for various pipelines with pressure ranging from PN10 to PN100 and working temperatures of -59 to 425℃ (Carbonsteel) , -29 to 650℃ (chromium-molybdenum steel),and -40 to 500℃ (stainless steel).It can be widely used as a shutoff device on liquid pipelines in industries such asperoleum, chemical engineering, food, tap water, sewage, construction, medicine, light textile, power, shipping, metallurgy, and energy systems.

Structural Features:

1.Design & Compliance: Engineered and manufactured in accordance with leading international standards, ensuring reliable sealing and superior performance.

2.Compact & Aesthetic Design: Features a rationally compact structure with an aesthetically pleasing appearance.

3.Easy Operation: Employs a wedge type flexible gate design; medium and large diameters   incorporate antifriction bearings for smooth, low-torque opening and closing.

4.Material Versatility: Comprehensive range of valve body materials. Packing and gaskets are optimally selected based on actual service conditions or specific customer requirements.

5.Connection Flexibility: Accommodates various domestic and international piping flange standards (e.g., ASME, EN, JIS) and flange face types (e.g., RF,RTJ), meeting diverse specifications.
